Sanyipace 512Hz Pipe Locator - Compatible with Sewer Camera 512Hz Transmitter, 16.5ft Range, 10H Battery, 3.5" Screen, Far/Near Modes for Pipes, HVAC, Drain, Ideal for Plumber, Electrician, Contractor

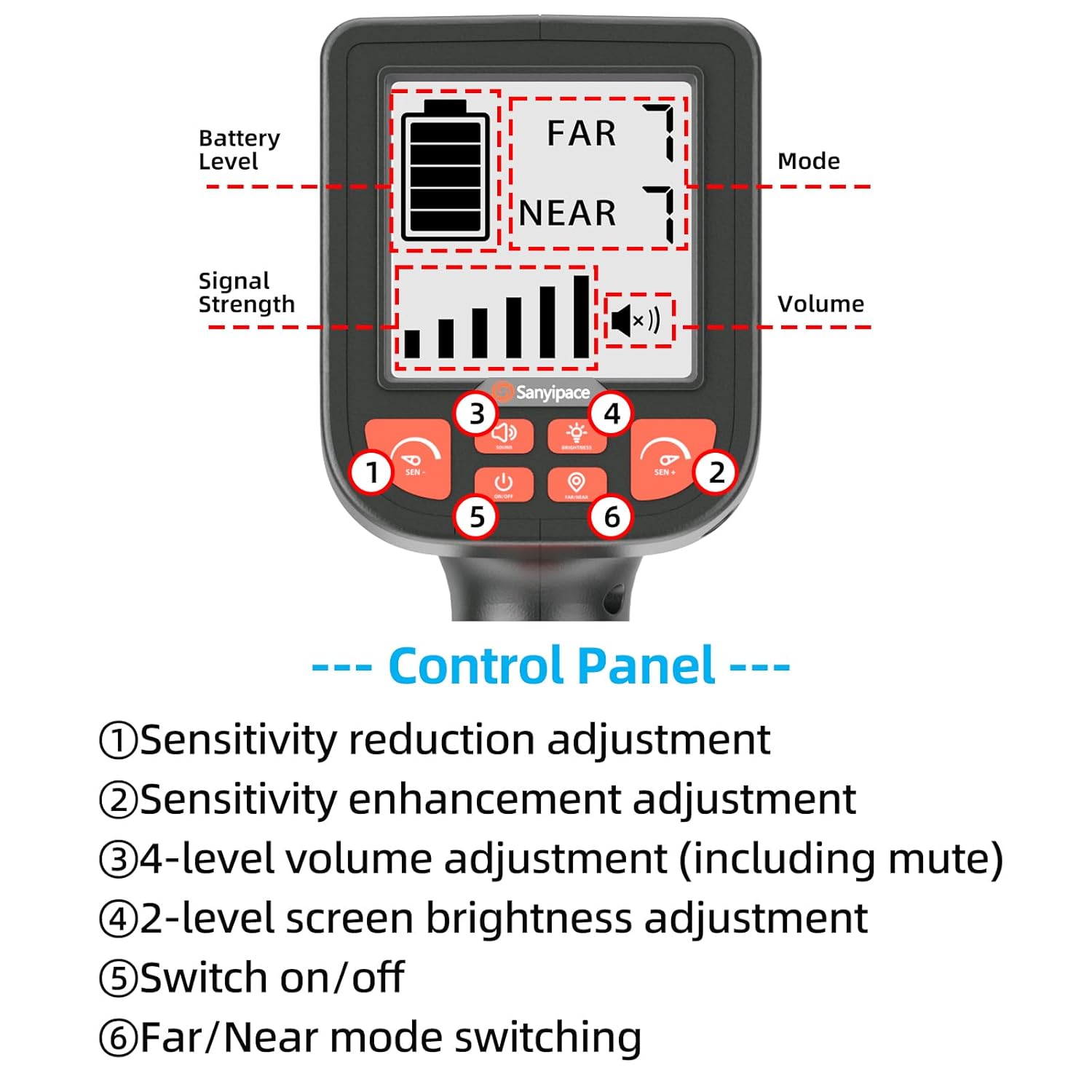

Sanyipace S68R 512Hz Pipe Locator How to Use Survey the area: ① Install the antenna and turn on the locator. ② Press the "SEN+" button to adjust the sensitivity to the maximum value (7), you will hear the noise from the speaker (you can also adjust or turn off the volume by pressing the "SOUND" button), and set the mode to "Far". ③Hold the receiver and walk around the area where you want to estimate the location, slowly sweeping the receiver back and forth. ④ When the correct direction of the transmitter is detected, the signal will become stronger, otherwise, it will become weaker. ⑤ When the signal display is full, slowly reduce the sensitivity by pressing the "SEN-" button. ⑥Keep the receiver perpendicular to the ground and slowly move closer to the transmitter. When the sensitivity is adjusted to the minimum value (1) and the signal display is still full, set the mode to "Near". Detector searches for specific locations: ① Use the above steps to find the approximate location of the transmitter and switch the mode to "near". ② Press the "SEN+" button to adjust the sensitivity to the maximum value (7), hold the receiver, and slowly sweep the receiver back and forth within the approximate location of the transmitter. The closer you get to the exact location of the transmitter, the stronger the signal will be, otherwise, it will become weaker. ③ When the signal is displayed as the strongest, slowly lower the sensitivity by pressing the "SEN-" button. When the sensitivity is adjusted to the minimum value (1) and the signal display becomes the strongest, you can determine that this position is the specific location of the transmitter.

• Precision Detection with 512Hz Technology - The S68R pipe locator uses an optimized 512Hz frequency to deliver strong, reliable signals through all common pipe materials - including PVC, concrete, cast iron, and clay - and covers a 5m (16.5ft) detection range in Far Mode for area scanning or a 1m (3.3ft) range in Near Mode for precise pinpointing. With six adjustable sensitivity levels, it maintains optimal signal strength across varying detection ranges
• Clear Visual & Audio Guidance - The bright 3.5" screen lets you see signal strength at a glance, while adjustable audio alerts (with earphone support) ensure clear detection signals even in noisy conditions
• Long Battery Life - Equipped with a 3000mAh battery, this 512Hz sewer locator provides 8-10 hours of continuous runtime on a full charge. USB-C charging cable included
• Portable Design with Complete Accessories - Lightweight (13.6in antenna) and ergonomically designed for one-handed use. Includes a USB-C charger, fasteners, earphones, and a waterproof storage case for on-site convenience
• NOTE - This S68R pipe locator must be used with a sewer camera equipped with a 512Hz transmitter! If your sewer camera does not support this feature, please contact us to buy a standalone 512Hz transmitter, ensuring full compatibility with your sewer camera.
