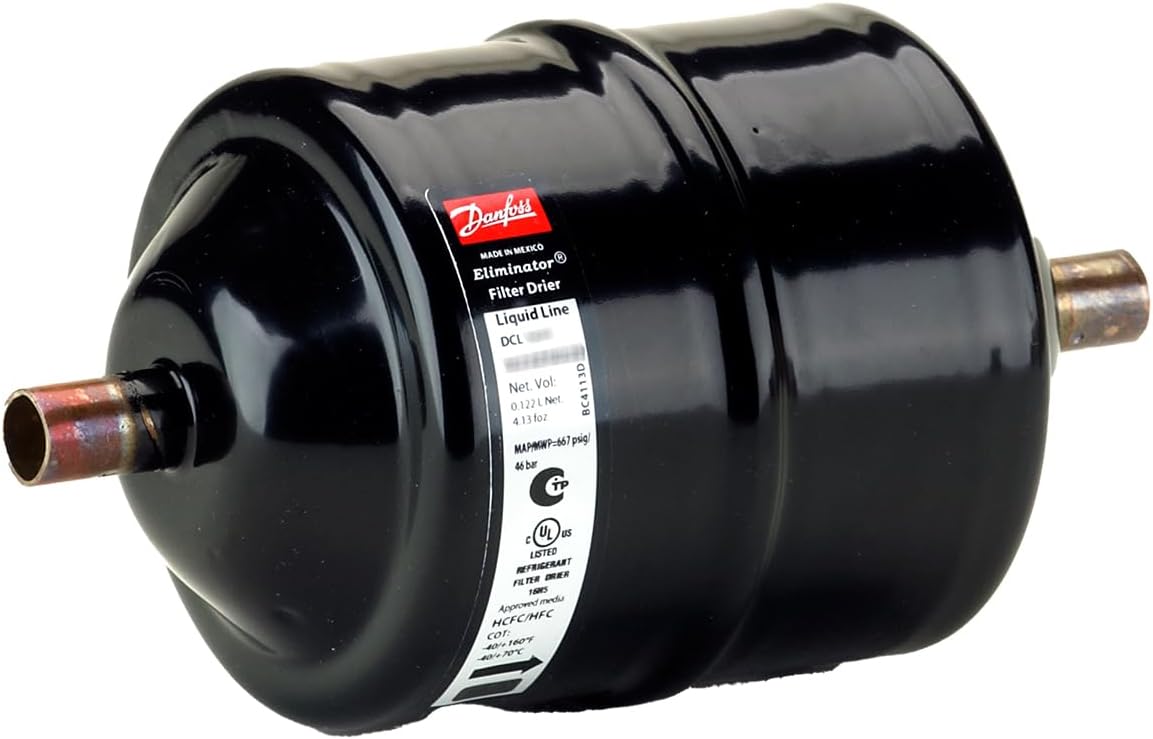

Danfoss ELIMINATOR DCL Hermetic Liquid-Line Refrigerant AC Filter Drier, Sweat/Solder Copper Connection, 80% Molecular Sieve / 20% activated alumina Solid Core (DCL 164S)

Engineered specifically to tackle the unique challenges encountered in Air Conditioning and Refrigeration Systems, Danfoss filter driers offer dependable solutions. Whether it's for residential, commercial, or industrial applications, Danfoss filter driers deliver enduring protection for your system. The DCL Hermetic Filter Driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by manufacturers. Built with a robust solid core design, all Danfoss filter driers excel in moisture and dirt removal while minimizing pressure drop. Employing a blend of molecular sieve and activated alumina, these driers effectively adsorb system moisture, neutralize acid, and prevent solid contaminants from infiltrating the system. Universal: Simple Drop-In Replacements For Most Dirers Installed In Refrigeration, Air Conditioning And Heat Pump Units Details: Solid Copper Inlet And Outlet Connections. Max Temperature 160 F (70C) Min Temperature -40F (-40C) Core: Solid Core With 80% Molecular Sieve And 20% Activated Alumina To Adsorb System Moisture And Capture Acid Outlet 1 Connection: 3/8 or 1/2 inch Compatible with: R1234yf, R125, R134a, R22/R407C, R23, R290, R32, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R507A, R513A, R600, R1234ze(E), R1233zd(E), R407H, R454A, R463A, R515B, R516A, R454C Not recommended for POE or PAGE with Additives Refrigerant Oil

• Simple Installation: Can be installed in any orientation as long as the arrow points in the flow direction
• Superior Drying Capacity: Features a solid core desiccant for maximum drying capability, preventing acid formation in refrigeration systems
• Compatibility with Low GWP Refrigerants: Also works seamlessly with newer, low Global Warming Potential (GWP) refrigerants
• Exceptional Dirt Retention: Filters particles down to 25 microns with minimal pressure drop
• Durability: Corrosion-resistant powder-painted finish withstands over 500 hours in a salt spray chamber
• Versatile Applications: Comprising 80% molecular sieve and 20% activated alumina, the DCL filter driers offer an ideal core blend for systems operating at high condensing temperatures and requiring extensive drying capacity
• OEM: 023Z8032
